LP1 Package
Complete Science Lab Utility Controller Package
- Allows the instructor to independently control gas, electricity, water and fan; key-activated to protect against unauthorized use, accidents and vandalism
- Programmable timer automatically turns off utilities when classroom is not in use
- Utilities default OFF until emergency has been resolved and teacher activates system
- Complete System includes utility controller, remote panic button, fuel gas sensor, monitoring beacon, emergency shower monitor and enclosures
- Emergency shut-off button deactivates utilities and turns exhaust fan on; fire alarm turns fan off
- Fuel Gas Sensor detects gas leaks; disables gas
- Monitoring Beacon visually indicates location of emergency
- Emergency Shower Monitor notifies if water is flowing
- Dimensons:
- Cover - 12.35” w x 14.35”
- Box - 10” x 12” x 3.5” D - UL Listed.
LP1 Package Includes:

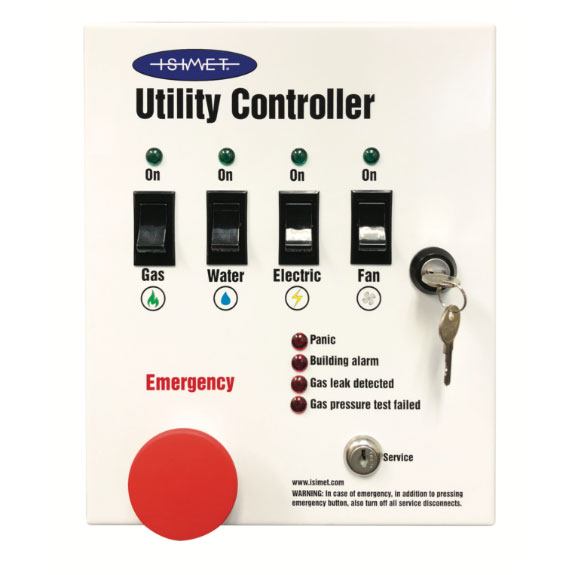

(1) Utility Controller:
- - 120 VAC Input w/ 24 VAC Output
- - Flush Mount
- - 4 Switch Front
- - Gray Powder Coated Box
- - White Powder Coated Door
(1) S Series Enclosure:
- (1) 24 VAC Gas Solenoid (3/4”)
- (2) 24 VAC Water Solenoids (1”)
- - Unions and Y strainer
- (1) Box and door
- - Flush Mount
- - Gray Powder Coated Metal Box
- - White Powder Coated Metal Door
(1) E Series Enclosure:
- - Surface Mount
- - Gray Powder Coated Box
- - Gray Powder Coated Door
- - Screw Cover Panel
- (1) Remote Panic Button
- (1) Emergency Shower Monitor
- (1) Monitoring Beacon
- (1) Fuel Gas Sensor
- Options:
- - Gas Pressure Transmitter
- - LA Series

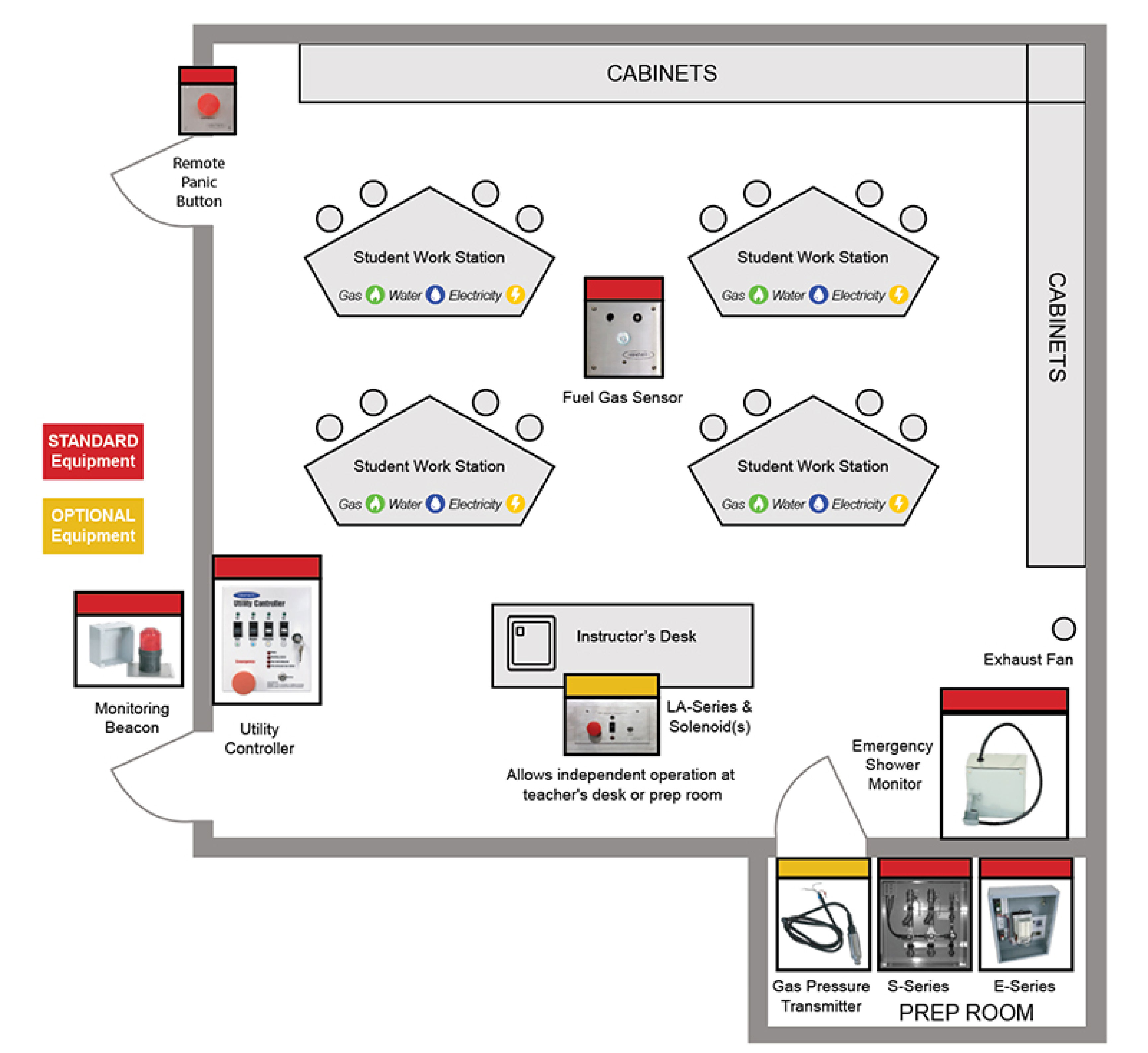

Typical Classroom Layout Including LP1
ISIMET® LP1 Laboratory Utility Downloads
- Installation and Maintenance
- LP1 Installation Instructions
- Sales and Ordering
- LP1 Sell Sheet
- Engineering and Submittal
- LP1 Engineering Drawing (PDF) LP1 Engineering Drawing (DWG)
- LP1 Specification (DOCX)
Helps keep students, teachers and facilities safe
UL LISTED SYSTEMS ARE CODE COMPLIANT,
MEETS OR EXCEEDS:
NFPA45, NFPA54, NFPA101, IFGC409
